Trackout Control Mat

RubberForm Trackout Control Mats remove sediment, mud, and dirt off heavy equipment leaving the job site. As a replacement to Stabilized Construction Exits & Entrances, RubberForm Trackout Control Mats are easy to install, maintain, and transport to the next jobsite. These Mats do not require a graded surface, anchors, brackets, or any pre-installation work. Simply lift the mats up and lay them down at your desired construction exit or entrance.

  • RubberForm can custom design to fit your job site needs (See Product Models below)
  • Installs in minutes – no anchors or brackets needed
  • No need to dig means no wasting time calling 811
  • Conforms to any surface on the jobsite
  • Quick & Easy maintenance. Simply lift the mat up & lay back down
  • Reusable – folds up for easy transportation & storage
  • Made in the USA with 100% compounded recycled materials – complies with ARRA 2009 and Buy America Acts
  • Replacement blocks & cables are available

Product Description

RubberForm’s Trackout Control Mats are the ideal solution to minimize the tracking of dirt, rock and other debris by vehicles exiting construction sites. Municipalities are enforcing regulations to protect against damage to property and the environment. Failure to properly manage a construction exit may lead to law suits and fines. The most economical and environmentally sound solution is the RubberForm Trackout Control Mat. Inquire about our rumble pad construction entrance today.

How Trackout Control Mats Work

Vehicle vibration caused by driving over the Trackout Control Mat removes sediment that might otherwise be tracked onto the road surface. Furthermore, RubberForm’s highly durable, yet portable and reusable Trackout Control Mats trap the debris as the vehicle passes over.

Installation is fast and simple: no digging, laying down gravel or filtering required.

At the conclusion of the project simply roll up the mats for transport to your next job site!

Specs

  • RubberForm can custom design to fit your job site needs (See Product Models below)
  • Installs in minutes – no anchors or brackets needed
  • No need to dig means no wasting time calling 811
  • Conforms to any surface on the jobsite
  • Quick & Easy maintenance. Simply lift the mat up & lay back down
  • Reusable – folds up for easy transportation & storage
  • Made in the USA with 100% compounded recycled materials – complies with ARRA 2009 and Buy America Acts
  • Replacement blocks & cables are available

regulations

Definition and Purpose

A stabilized construction entrance is a temporary control practice defined by a point of entrance/exit to a construction site that is stabilized to reduce the tracking of mud and dirt onto public roads by construction vehicles.

Appropriate Applications

  • Use at construction sites:
    • Where dirt or mud can be tracked onto public roads
    • Adjacent to water bodies
    • Where poor soils are encountered
    • Where dust is a problem during dry weather conditions
    • This BMP may be implemented on a project-by-project basis in addition to other BMPs when determined necessary and feasible by the Resident Engineer (RE)
  • Crushed aggregate greater than 75 mm (3 inches) and smaller than 150 mm (6 inches) shall be used

Limitations

  • Site conditions will dictate design and need.

Standards and Specifications

  • Limit the points of entrance/exit to the construction site
  • Limit speed of vehicles to control dust
  • Properly grade each construction entrance/exit to prevent runoff from leaving the construction site
  • Route runoff from stabilized entrances/exits through a sediment-trapping device before discharge
  • Design stabilized entrance/exit to support the heaviest vehicles and equipment that will use it
  • Select construction access stabilization (aggregate, asphaltic concrete, concrete) based on longevity, required performance, and site conditions
  • The use of asphalt concrete (AC) grindings for stabilized construction access/roadway is not allowed
  • Use of aggregate or constructed/manufactured steel plates with ribs for entrance/exit access is allowed with written approval from the RE
  • If an aggregate is approved, place crushed aggregate over geotextile fabric to at least 300 mm (12 in) depth, or place aggregate to a depth recommended by the RE
  • Crushed aggregate greater than 75 mm (3 inches) and smaller than 150 mm (6 inches) shall be used
  • Designate combination or single purpose entrances and exits to the construction site
  • Implement BMP SC-1 7, “Street Sweeping and Vacuuming” as needed and as required
  • Require all employees, subcontractors, and suppliers to utilize the stabilized construction entrance and exit
  • All exit locations intended to be used for more than a two-week period continuously and for a period of time shall have stabilized construction entrance/exit BMPs (TC-1 “Stabilized Construction Entrance/Exit” or TC-3 “Entrance/Outlet Tire Wash”)

Maintenance and Inspection

  • Inspect routinely for damage and assess the effectiveness of the BMP. Repair it if access is clogged with sediment or as directed by the RE. Remove aggregate, separate, and dispose of sediment if construction entrance/exit is clogged with sediment or as directed by the RE.
  • Keep all temporary roadway ditches clear.
  • Inspect for damage and repair as needed.

models

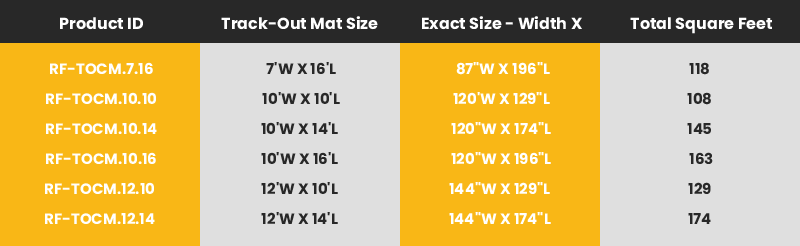

RubberForm can custom design to fit your job site needs:

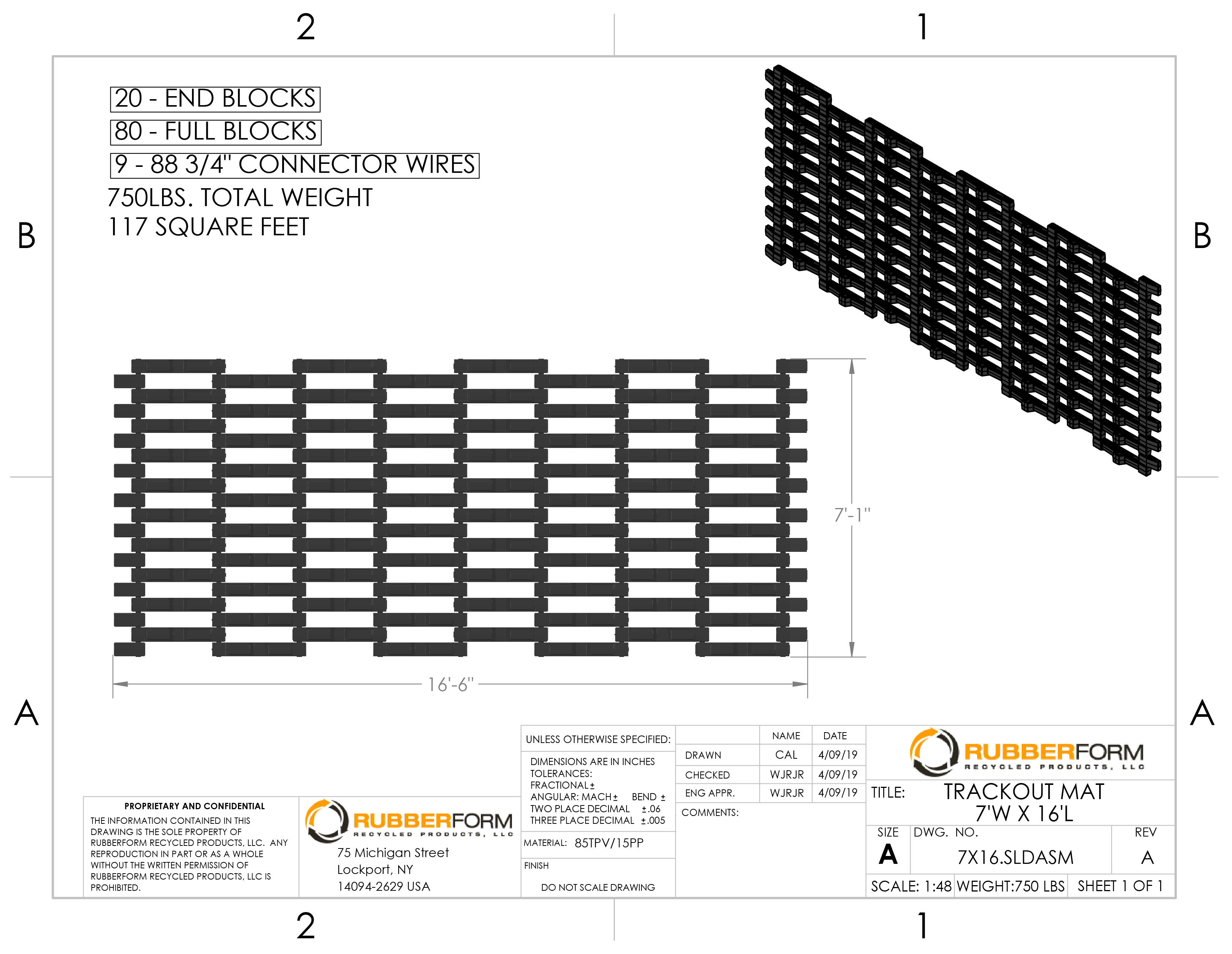

RF-TOCM-07.16

  • 7’W x 16’L
  • Exact size: 87″W x 196″L
  • 118 square feet
  • 795 lbs

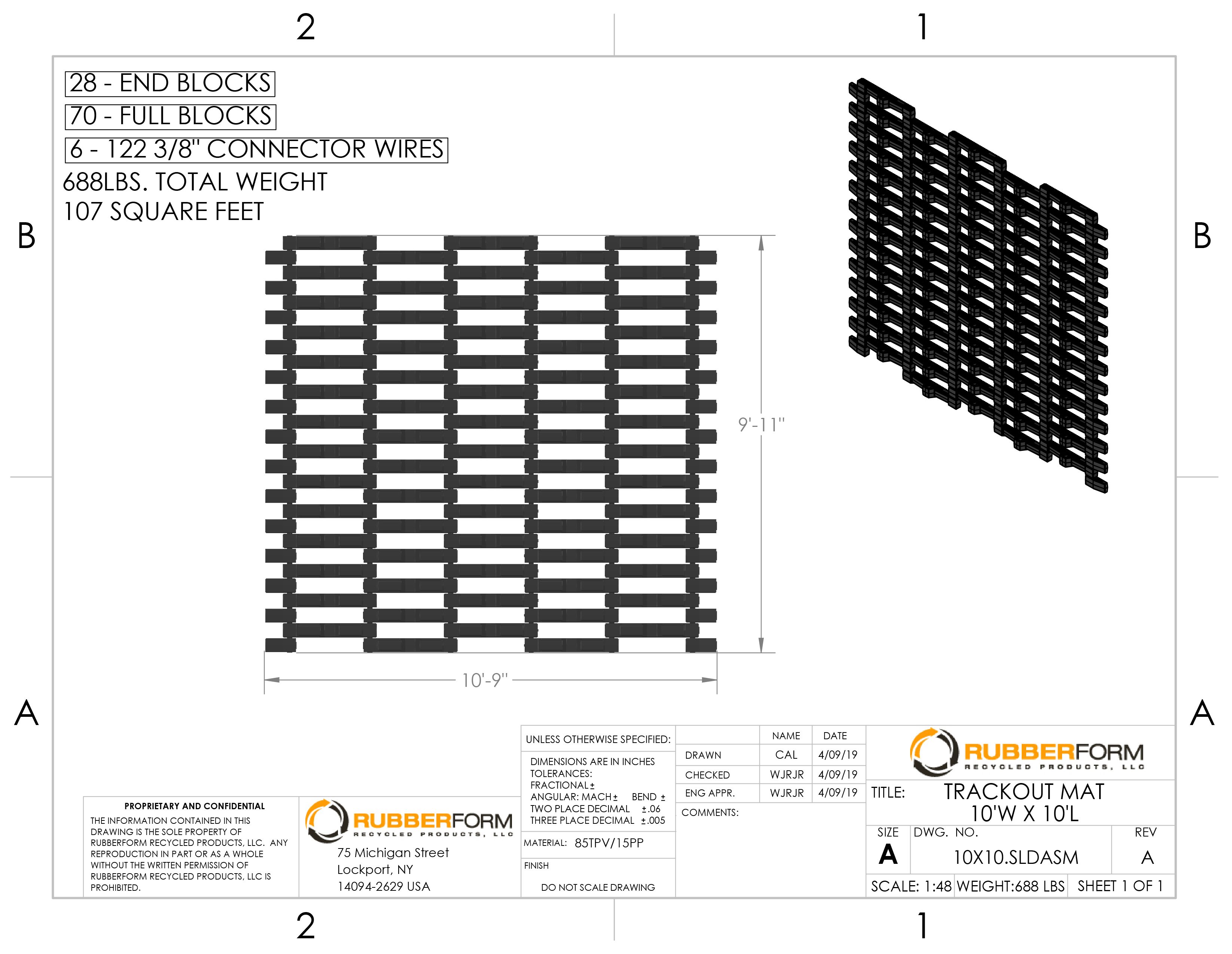

RF-TOCM-10.10

  • 10’W x 10’L
  • Exact size: 120″W x 129″L
  • 108 square feet
  • 730 lbs

RF-TOCM-10.14

  • 10’W x 14’L
  • Exact size: 120″W x 174″L
  • 145 square feet
  • 975 lbs

RF-TOCM-10.16

  • 10’W x 16’L
  • Exact size: 120″W x 196″L
  • 163 square feet
  • 1,100 lbs

RF-TOCM-12.10

  • 12’W x 10’L
  • Exact size: 144″W x 129″L
  • 129 square feet
  • 875 lbs

RF-TOCM-12.14

  • 12’W x 14’L
  • Exact size: 144″W x 174″L
  • 174 square feet
  • 1,200 lbs

RF-TOCM-12.16

  • 12’W x 16’L
  • Exact size: 144″W x 196″L
  • 196 square feet
  • 1,325 lbs

solutions

What is the Trackout & Carryout Problem?

  • Trackout dirt, mud, stone, or other debris tracked or carried out onto a paved public road by a vehicle leaving a construction site.
  • Dirt, stone, and mud adhering to tires, the exterior, or undercarriage of a vehicle leaving a construction site that falls onto a paved public roadway.
  • Traces of dirt, stone, or other bulk material that spill onto a paved public road from an improperly loaded haul vehicle leaving a construction site.
  • Dirt, stone, and mud leaving an unpaved access road going onto a paved public roadway.

Sources of particulate matter (PM), a regulated air pollutant, are when the material deposited on the pavement is lifted back into the atmosphere – or “re-entrained”-by the tires of vehicles passing over the matter. A large portion of particulate matter in the metropolitan area is caused by vehicle re-entrainment. Trackout and carryout remaining on roads can also lead to water pollution in the form of suspended sediment when carried to bodies of water by stormwater runoff.

According to many county and municipal governmental agencies, trackout control is required for excavation sites having a disturbed surface area from which material is hauled on or off-site. Be sure to contact your local governmental agency for your area’s exact requirement. It’s also worth noting that trackout could also be a violation of your areas hauling and stormwater ordinances.

The Trackout & Carryout Control Solution

Installing our trackout mats here at RubberForm will prevent trackout and carryout of particulate matter from dirt, mud, stone, or other debris onto paved public roadways. The simplest and quickest control technique is the installation of a trackout control mat. This is a modular, customizable rumble mat that consists of a ground-level, hard yet flexible rubber and plastic mat that when driven over creates a rumble designed to remove PM from vehicles tires. Our trackout control systems here at RubberForm are easy to deploy, clean, and can be stored and reused for years to come.

Why Our Trackout Control Mats are Better Than Current Standards

Gravel trackout pads are most commonly used as stabilized exits on excavation and construction sites. These are less effective than our mats at RubberForm and the gravel trackout pads are harder to keep clean and maintained. A typical layout is 20 feet wide by a minimum of 50 feet long — most are 100 feet long with a 30-foot width with number 2 coarse aggregate and are at least 6 inches deep. They are more expensive over time and are hard to maintain. The mats at RubberForm are the best and most cost-effective long-term choice. It can be moved and reused over time, unlike gravel trackout pads.



trackout vs gravel infographic

Wash Pit

Wash Pits are very effective at removing the debris from the trucks leaving the job site, however, they are extremely expensive to install and maintain. They are very effective when used in conjunction with the mats at RubberForm to remove dirt, stone, and debris from tires and undercarriages of vehicles. You can install our trackout mats before or after the wash pit. The wash pit trackout mat combo is best when they are used for extended projects or projects with high levels of debris.

Trackout vs wash put infographic

Paving

Temporary paved construction access is an effective method of sediment control, but it is also a more expensive option. The paved surface must extend at least 100 feet from the point of intersection with the public road and be at least 20 feet wide. Solutions to minimize trackout onto the public roadways are not always 100% effective. For debris leaving the job site, remove sediment and rock from the pavement as soon as possible, but no later than the end of the workday on the same it has been deposited on the paved road.

Trackout vs paving infographic



Rubberform Vs. The Competition

WE ARE CONFIDENT THAT OUR SEDIMENT CONTROL SYSTEMS AT RUBBERFORM ARE THE BEST IN THE BUSINESS.

HERE ARE A FEW REASONS WHY!

installation

Rubberform

Our Trackout Control Mats can be set-up from start to finish in a matter of minutes. Just set it where you need it and you can fold it up to take it with you when you’re done. Reuse them over and over!

The competition

Trackout control solutions offered by our competitors can take hours to set up as well and are a laborious task to install – taking away valuable time and most of all, money from your operation. Many competitor solutions are not easily moved and cleaned out, adding most time and costing money for their sediment control solution.

Sustainability

Rubberform

We are strict about our use of recycled rubber products that are sustainably manufactured here in the U.S.A. We make every effort to operate in an eco-friendly and environmentally responsible manner.

The competition

Our competition rarely uses recycled material. Their products contribute to the waste that sits in landfills and they do not possess the environmentally responsible mindset that takes care of our planet.

gets the job done

Rubberform

At Rubberform, our sediment control solutions have proven time and time again that they are the best at knocking off sediment, dirt, stone, and debris off vehicle tires.

The competition

The competition’s ineffective, costly “solutions” often only work as a half measure. They knock off “some” sediment but leaves you with little to be desired.

durability

Rubberform

Our Trackout Control Mats are unbelievably tough. In fact, we go as far as to say that they are unbreakable. You break it and we’ll replace the block. It’s that easy!

The competition

Unfortunately, the competition’s products are not produced for the same high-quality recycled materials, it’s virgin. This means they are prone to breakage, not fixable, and need to be replaced regularly if broken.

customization

Rubberform

At Rubberform, we can custom tailor our Trackout Control Mats to meet your specific needs and we have great pre-set sizes to choose from based on past customer preferences.

The competition

The competition has a “one size fits all” approach. This cookie-cutter application can prove unreliable with all the nuances a construction site can have.

At rubberform, we believe that our trackout solutions are the best in the business - and we can back it up!

100% Recycled Materials

Manufactured with only post-consumer or post-industrial materials.

UV Resistant - All Weather!

All-weather product - won’t crack, crumble or rust!

Made in the USA

Feel good about buying products manufactured in the US and from US materials.

BuildingGreen Listed

Achieve your sustainability goals with LEED points.
