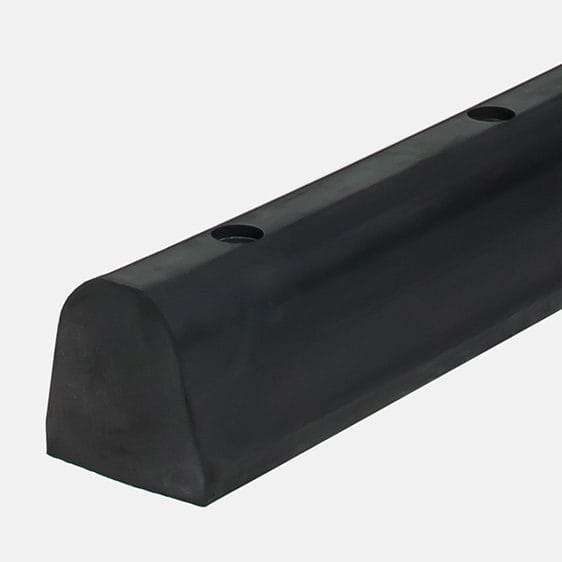

Spill Containment Berms

Mechanically isolate areas and contain spills.  Our berms allow you to construct border curbs without resorting to expensive concrete barriers, culverts, and construction costs.

Spill Containment Berm Spec Sheet (PDF)

Specifications

  • 3 sizes available:
    • 2”, 4″ or 6” high rubber EPDM spill containment berms
    • Extruded in 10′ lengths
  • Can be custom fabricated for any length, shape or configuration
    • CAD drawings are provided for fabrication and installation approval
  • Highly resistant to most chemicals – self-certification testing available (contact us for more info)
  • Flexible – conforms to any surface
  • Indoor or outdoor use
  • Liquid-tight seals with our sealant/caulk adhesive
  • Pyramid shaped for optimal protection
  • Drive-Over Spill Containment Berms also available
  • Made in the USA with 100% post-industrial EPDM rubber

Product Description

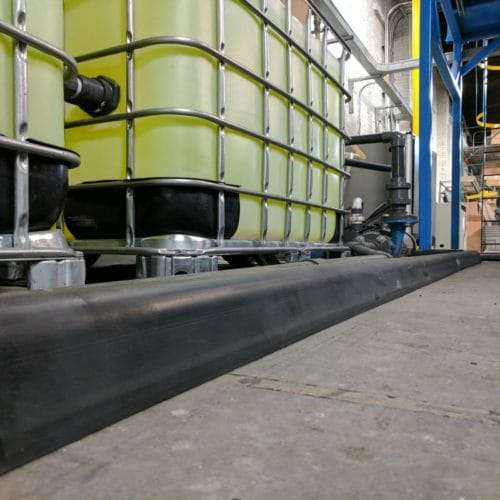

RubberForm’s Spill Containment Berms can be used as a structure to mechanically isolate areas and contain spills.  Our berms allow you to construct border curbs without resorting to expensive concrete barriers, culverts, and construction costs. The solid bottom adheres to most surfaces and is ideal for applications where you need to hold, divert, or redirect liquids.

Federal Spill Prevention, Control, and Countermeasure (SPCC) regulations include requirements for spill prevention, preparedness, and response to prevent the pollution of navigable waters and adjoining shorelines. The rules require specific facilities to prepare, amend, and implement SPCC Plans (EPA) to ensure their containment area has enough capacity to contain at least 10% of the total volume of the primary containers, or 100% of the volume of the largest container, whichever is greater.

RubberForm’s extruded rubber berms stand up to oils, solvents, fuels, other hazardous liquids, and water for all SPCC requirements and can be custom fabricated to any specification, shape, or configuration.

*Please consult with your environmental engineer to ensure compliancy.

EPA Spill Prevention, Control, and Countermeasure Rules (PDF)

We also offer Drive-Over Spill Containment Berms.

Models

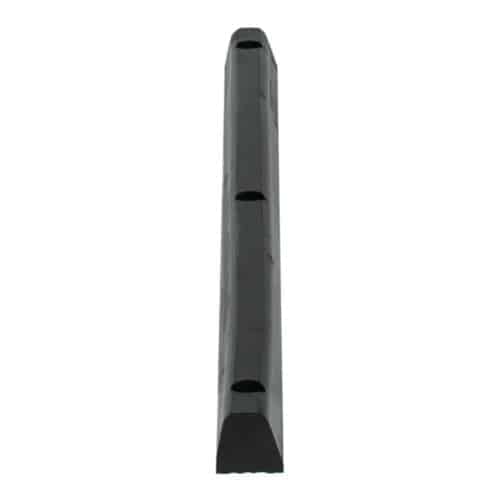

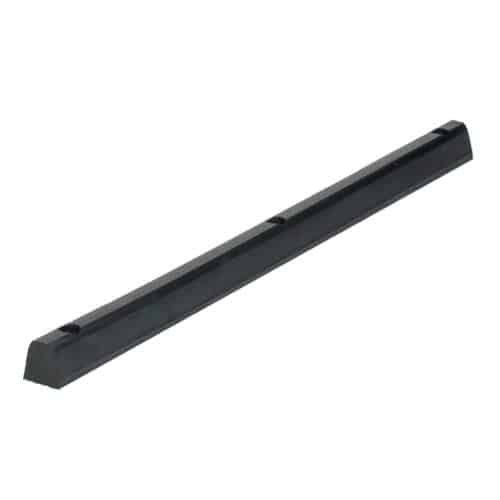

RF-SCB22FR

  • 2 Inch Spill Containment Border
  • 4 lbs per foot

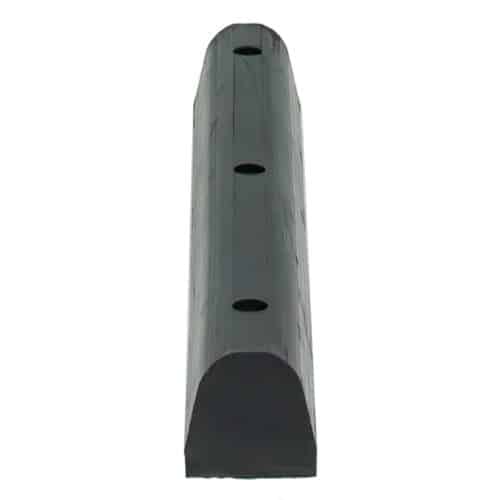

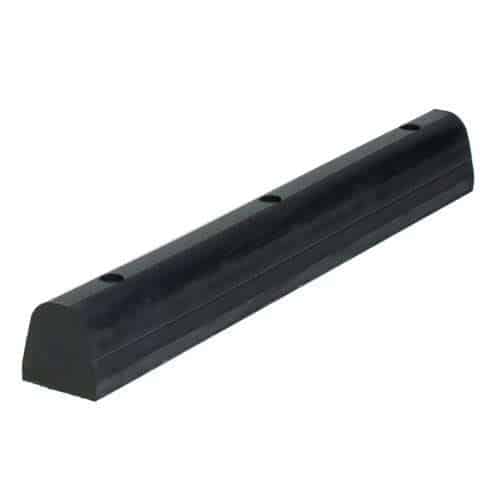

RF-SCB44FR

  • 4 Inch Spill Containment Border
  • 7 lbs per foot

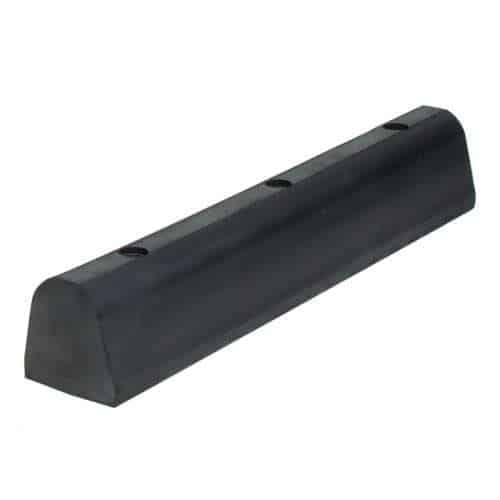

RF-SCB66FR

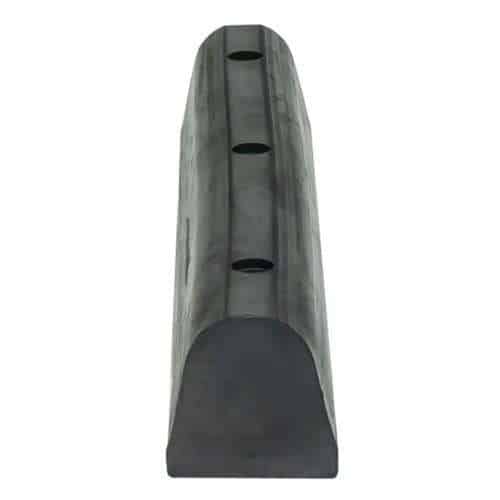

  • 6 Inch Spill Containment Border
  • 15 lbs per foot

Hardware Kits

RF-SCBLS22

  • Hardware kit for 2 inch spill containment berm
  • 3-1/2”L x 5/16”W Lag Bolt
  • 1-3/4”L x 5/16”W Anchor
  • 5/16” Washer

RF-SCBLS44

  • Hardware kit for 4 inch spill containment berm
  • 6”L x 3/8”W Lag Bolt
  • 1-1/8”L x 9/16”W Anchor
  • 1/2” Washer

RF-SCBLS66

  • Hardware kit for 6 inch spill containment berm
  • 10”L x 1/2”W Lag Bolt
  • 1-3/8”L x 9/16”W Anchor
  • 1/2” Washer

RF-CLM-1.10.1BLK

  • Chem-Link M1 Structural Adhesive – 10.1 oz cartridge, black, no VOCs

Key Features

  • Can be custom fabricated for any length, shape or configuration
  • Will not crack, break, rip or disintegrate
  • Flexible – conforms to any surface
  • Indoor or outdoor use
  • Pyramid shape for optimal protection
  • Liquid-tight seals
  • Made in the USA with 100% post-industrial EPDM rubber

100% Recycled Materials

Manufactured with only post-consumer or post-industrial materials.

UV Resistant

All-weather product – won’t crack, crumble or rust!

Made in the USA

Feel good about buying products manufactured in the US and from US materials.

Leed Certified

Achieve your sustainability goals with LEED points.
